HomePage Product LED Street Light SL01-Series 160LM/W LED Street Light with Optional NEMA Light Sensing Tech

Up to 160lm/W

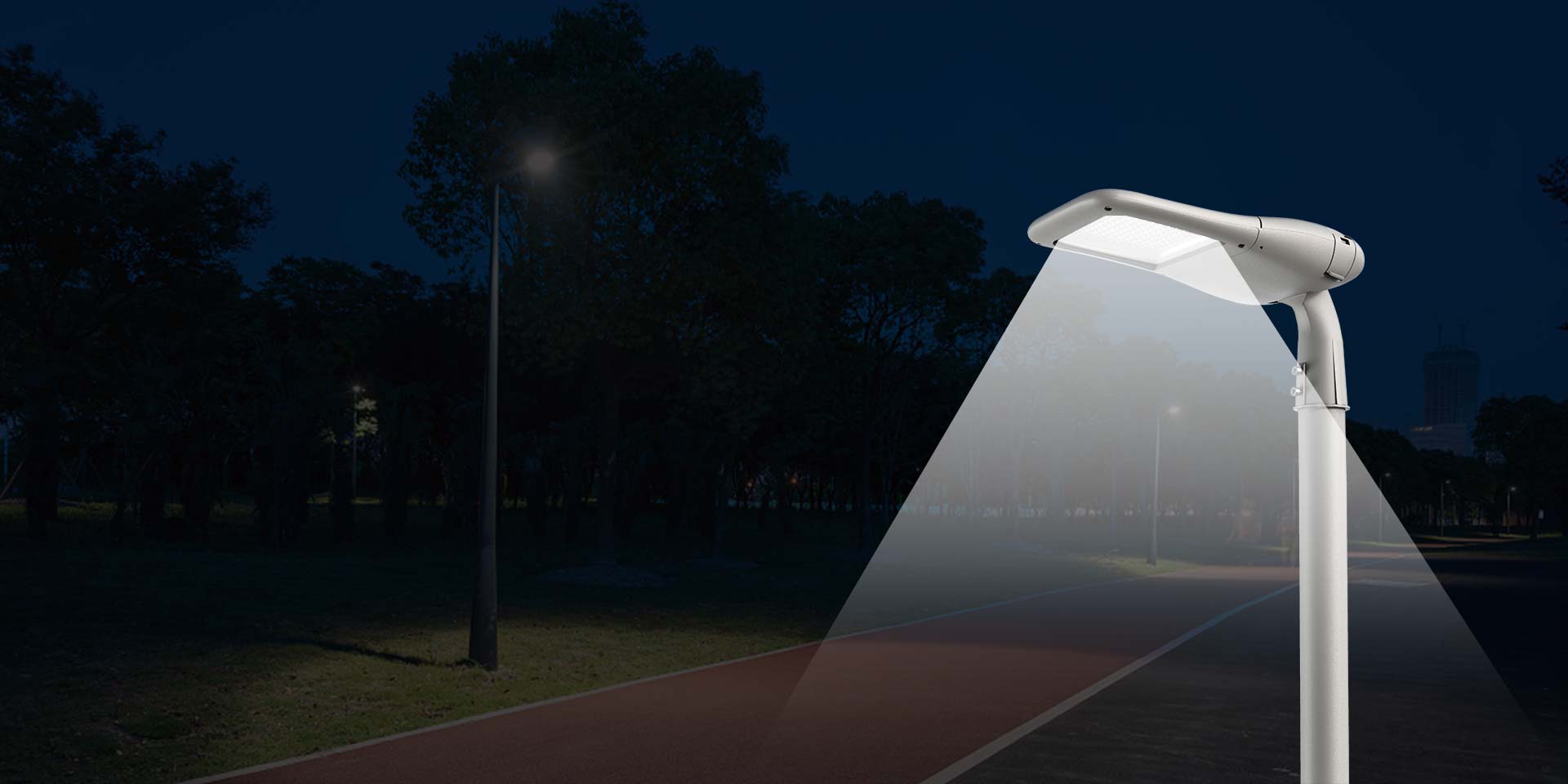

Designed from the ground up as a totally optimized LED lighting system, the SL01 Series delivers incredible efficiency without sacrificing performance. The SL01 emits up to 26,000 lumens and featuring Type II, III, IV and V optics. Perfect for brightening street at an affordable price with a choice of photocell shorting cap. 5 Years Warranty.

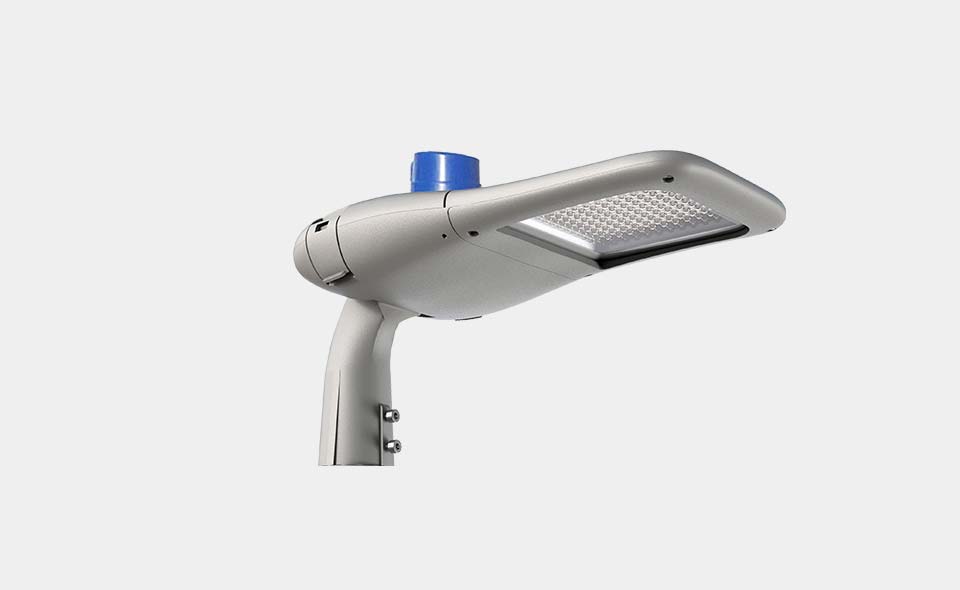

Optional NEMA light sensing function

SL01 professional street lamps have optional NEMA light sensing function. Automatic lighting without manual operation. Meanwhile, the lighting cost is greatly saved.

Asymmetric Optics

Asymmetrical light distribution helps to focus the light on the required area.Choose our professional asymmetrical optical lens with excellent back light control.

TYPE2

TYPE3

TYPE4

TYPE5

01

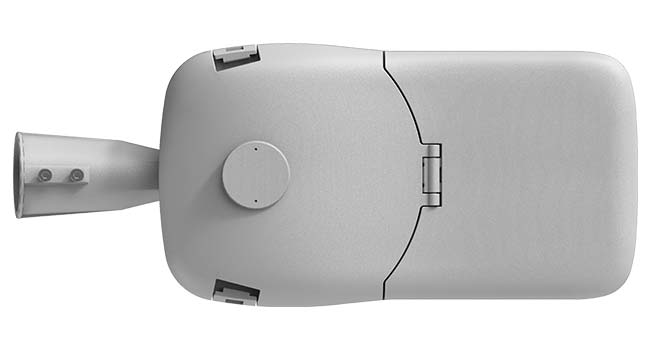

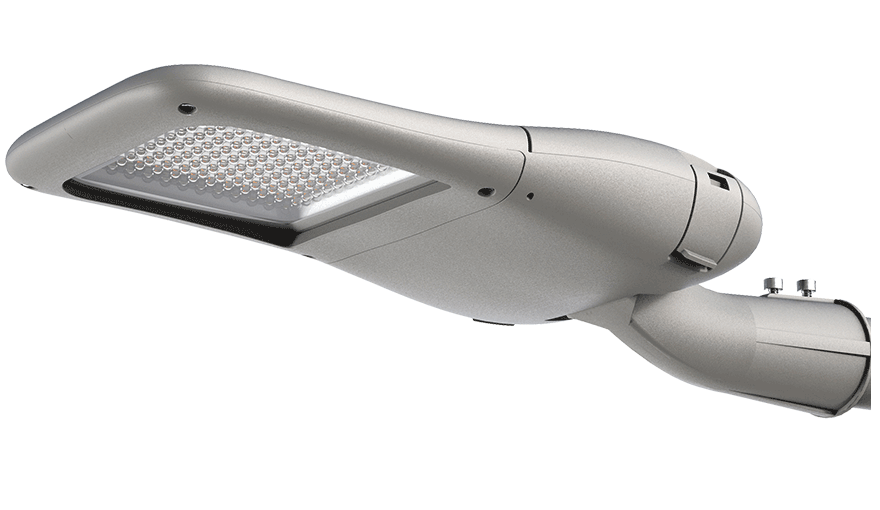

Die-casting aluminum radiating shell

SL01 is a professional street lamp. Outstanding lighting effect and beautiful appearance. Die-cast aluminum radiating shell is used; Smooth shell design, which can automatically clean and quickly dissipate heat;
02

Serialized product design

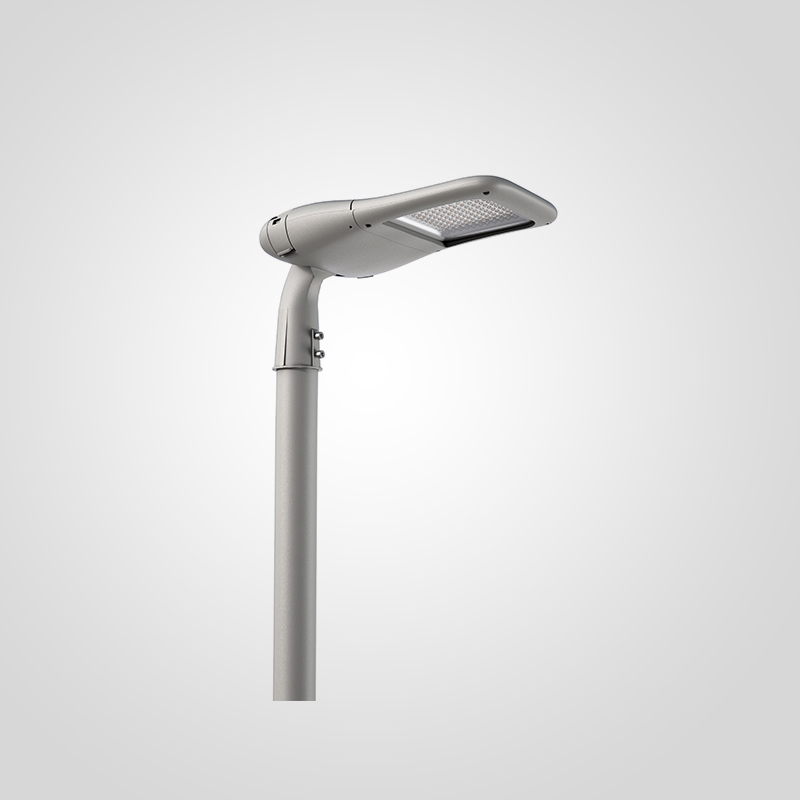

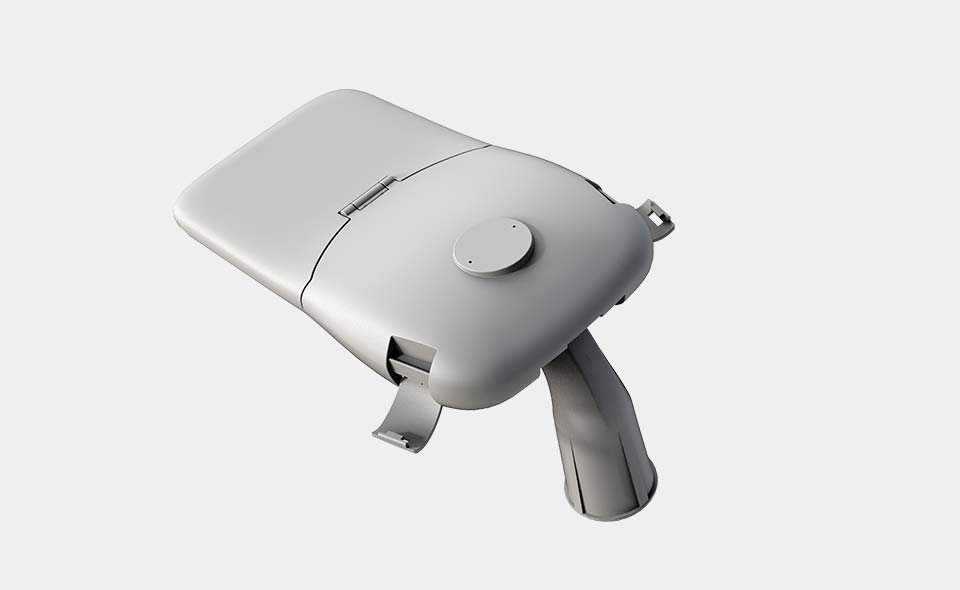

SL01 professional street lamps are installed by pole; The power cover can be disassembled by hand, so the installation is very simple and the maintenance is very convenient.

Detail Parameters

Series SL01 Series
Power 60W, 80W, 100W, 150W, 200W
Efficacy 160lm/W, 130lm/W
Input Voltage 120-277VAC, 50 / 60 Hz
Power Factor 0.9
Surge Protection 10KV-Line-Line, 10KV-Line-Earth, 20KV Optional
Control 1-10V, Photocell (optional)
IP Rating IP66
IK Rating IK08
CCT 6500K,5700K, 5000K, 4000K, 3000K
CRI 80, 70
Operating Temperature -30°C to + 45°C
Beam Angle Type2, Type3, Type4, Type5 Angle
Mounting Option Side entry or Vertical pole mounted
Reflector Nano Reflector
Warranty 5 Years Warranty
