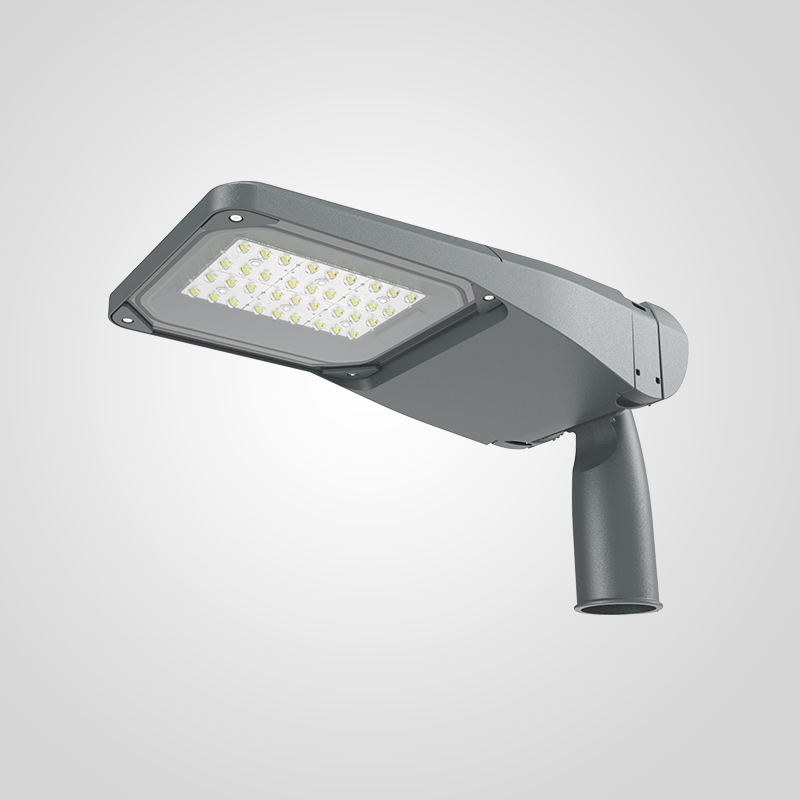

HomePage Product LED Street Light SL02-Series

Up To 130-170LM/W

Our selection of LED roadway and Street Lighting Fixtures gives roadway owners and municipal managers the best illumination options possible. Designed from the ground up as a totally optimized LED Lighting System, the SL02-Series delivers incredible efficiency without sacrificing performance. The SL02 emits up to 36,000 lumens and featuring Type II, III, IV options. Perfect for brightening street at an affordable price with a choice of photocell shorting cap.

Optional NEMA Light Sensor Function

SL02 professional Led Street Lights have optional NEMA light sensor function.Automatic lighting without manual operation.Meanwhile,the lighting cost is greatly economical.

Detail Parameters

Series SL02-Series
Power 20W-240W
Efficacy 130-170LM/W
Input Voltage 120-277V︱50/60Hz
Power Factor >0.9
Surge Protector 10KV-Line-Line / 10KV-Line-Earth
Control 1-10V, Photocell(Optional)
IP Rating IP66
IK Rating IK08
CCT 3000-6500K
CRI CRI>70 Standard, CRI>80 Optional
Operating Temperature -35°C to +50°C
Beam Angle T2/ T3/ T4
Mounting Option Vertical Pole Mounted
Electrical class Class I
Warranty 5 Years Warranty

Downloads

IES Report
